IDENTIFICATION PART NUMBER OR NAME SELECTIONS.

Please use the ”Search” function at the top of this page to find part numbers. Simply enter a partial part number, part name, or even pump size, and you will be presented with images and descriptions of the part that you are most likely looking for.

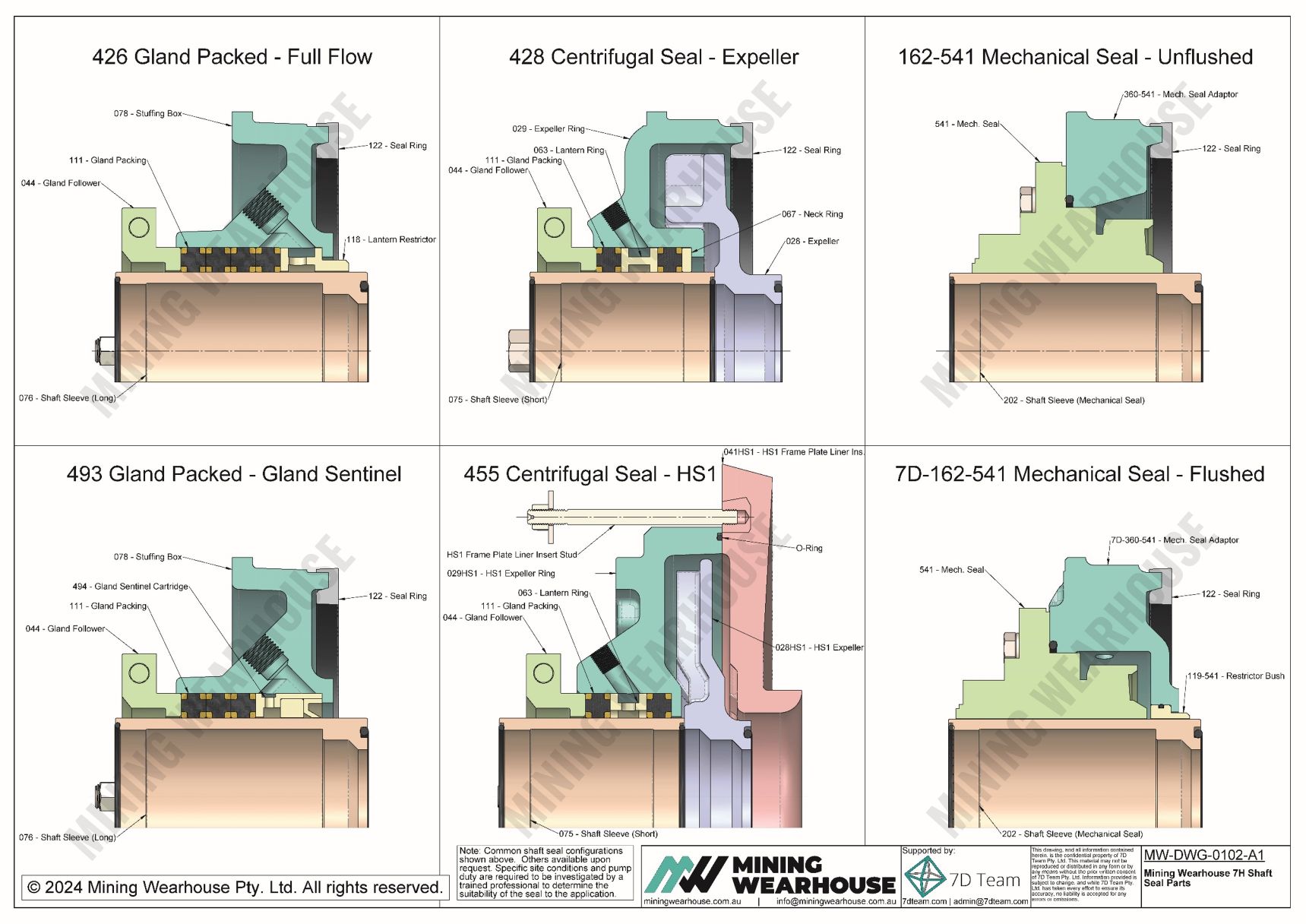

If you are not sure about the general pump assembly details, please contact Mining Wearhouse for Sectional Arrangements, as this example detailing the various Shaft Seal Options that are available.

Slurry Pump Shaft Seal Arrangements

Explore and Understand Slurry Pump Mechanics.

Our interactive Pump Part tool has been developed to provide a visual guide of slurry pumps, and to help determine which part is underperforming or needs to be replaced. It is useful tool to develop an understanding of the mechanical components of a slurry pump and to see how the different parts interact.

To view the tool on your smartphone, or Apple Vision Pro, and see the pump to scale in your environment scan the QR code on the right.

Learn more about slurry pump parts.

At its core, a slurry pump is made up of three main sections: the wet end, bearing housing and the seal chamber.

Wet End

Seal Chamber

Bearing Housing

The wet end includes all pump parts that directly interact with slurry such as the impeller, throat bush, frame plate liner insert and volute liner. The primary function of the wet end is to withstand the erosive nature of slurry, so using parts with heavy duty materials is essential. Various material options are stocked, suiting a broad range of needs.

View Wet End Parts

The Seal Chamber includes all pump parts that directly interact with slurry such as the impeller, throat bush, frame plate liner insert and volute liner. The primary function of the wet end is to withstand the erosive nature of slurry, so using parts with heavy duty materials is essential. Various material options are stocked, suiting a broad range of needs.

View Seal Chamber Parts

The Bearing Housing includes all pump parts that directly interact with slurry such as the impeller, throat bush, frame plate liner insert and volute liner. The primary function of the wet end is to withstand the erosive nature of slurry, so using parts with heavy duty materials is essential. Various material options are stocked, suiting a broad range of needs.

View Bearing Housing Parts
